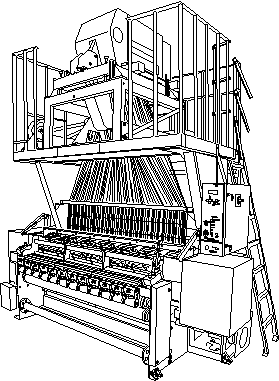

ジャガード搭載仕様

Specification of loom with jacquard

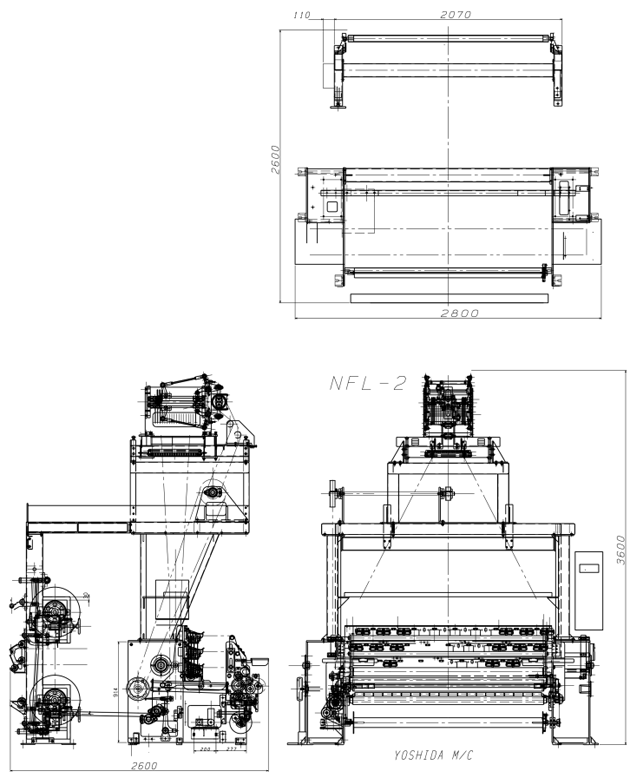

NFL-2　Specification

3Decks model

Bobbin Size=Diameter×Total Length(mm)

Model	Weavin Width (MAX)	Reed Space	Nos Of Tape	Color	weft Bobbin Size NO1	weft Bobbin Size NO2	weft Bobbin Size NO3～5
G33B-3-3	20	30	33	3	φ 20×63	φ 16×63	φ 16×60
G33B-3-4	20	30	33	4	φ 20×63	φ 16×63	φ 16×60
G30A-3-4	25	30	30	4	φ 25×70	φ 25×70	φ 16×60
G28A-3-4	30	39	28	4	φ 25×70	φ 25×70	φ 16×60
G27A-3-4	36	43	27	4	φ 25×70	φ 25×70	φ 16×60
G21A-3-4	50	60	21	4	φ 25×70	φ 25×70	φ 16×60
G21D-3-5	50	60	21	5	φ 20×70	φ 20×70	φ 16×60

2Decks model

Bobbin Size=Diameter×Total Length(mm)

Model	Weavin Width (MAX)	Reed Space	Nos Of Tape	Color	weft Bobbin Size NO1	weft Bobbin Size NO2	weft Bobbin Size NO3～5
G20A-2-4	27	34	20	4	φ 25×70	φ 25×70	φ 16×60
G18A-2-4	36	42	18	4	φ 25×70	φ 25×70	φ 16×60
G15A-2-4	50	60	15	4	φ 25×70	φ 25×70	φ 16×60
G15D-2-5	50	60	15	5	φ 20×70	φ 20×70	φ 16×60
